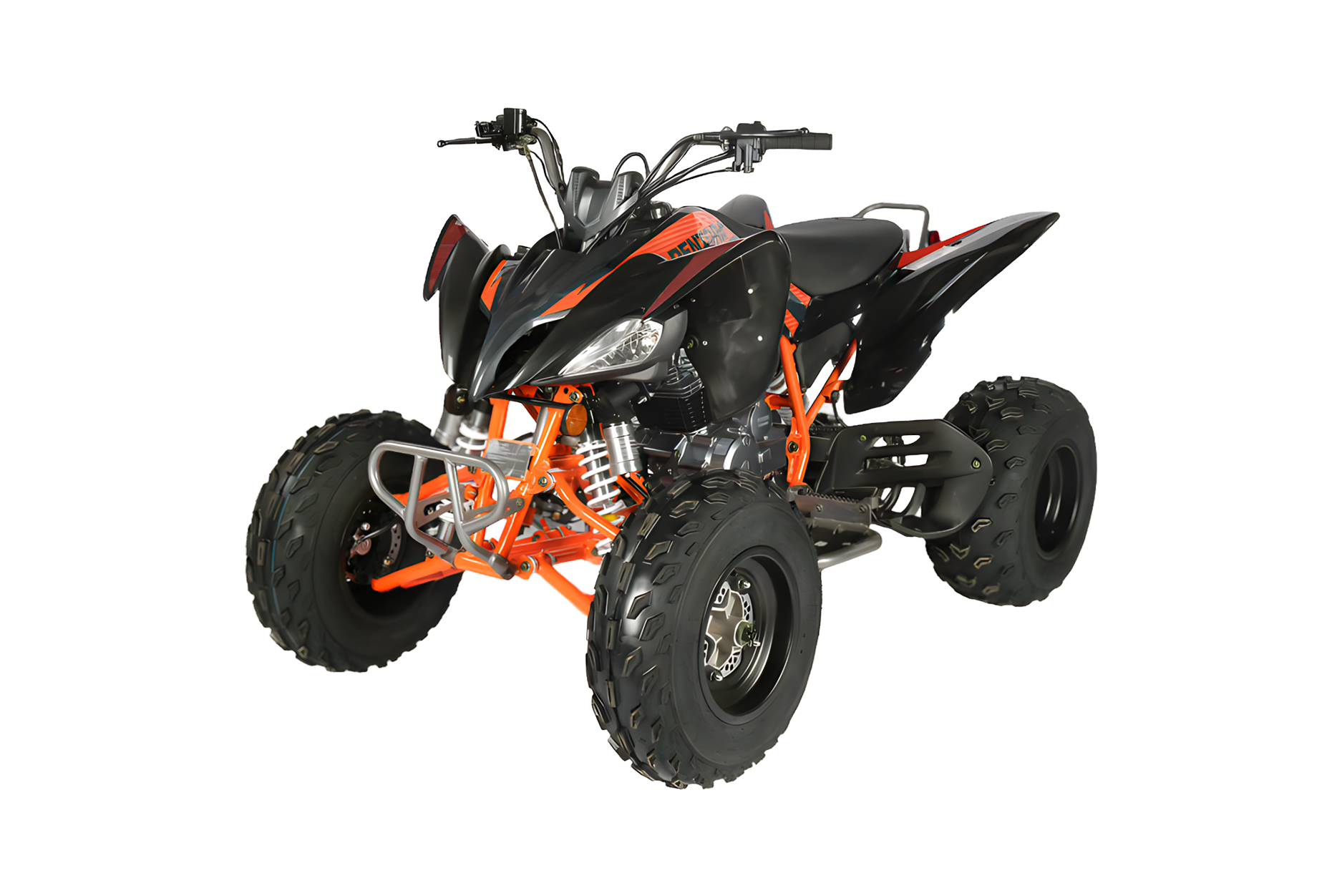

El Pentora 250cc Apollo ATV Y65-Y250 es un vehículo todoterreno potente y versátil, equipado con un motor Loncin LC166FMM de 250cc, 4 tiempos y refrigerado por aire, que ofrece 12 kW de potencia y 17 N·m de torque. Con transmisión manual, suspensión de amortiguadores de aceite (350 mm delante y 390 mm atrás) y frenos de disco hidráulicos, garantiza un manejo suave y seguro en terrenos difíciles.
| TECHNICAL SPECIFICATION | PARTS SPECIFICATION |
|---|---|
| L×W×H | 1625 x 1060 x 1065 mm |
| Wheelbase | 1090 ± 20 mm |
| Front Wheelbase | 820 mm |
| Rear Wheelbase | 830 mm |
| Minimum Ground Clearance | 135 ± 15 mm |
| Seat Height | 790 ± 15 mm |
| Ride Height | 225 mm |
| Handle Height | 1000 mm |
| Packing Size | 1460 x 880 x 860 mm (62 pcs/40HQ) |
| Minimum Turning Circle Diameter | 5900 ± 500 mm |
| Turning Angle | <45° |
| Rated Load | 100 kg |
| Net Weight | 149 kg |
| Gross Weight (with packing) | 177 kg |
| F&R Brake | Front & Rear Hydraulic Disc |
| F&R Brake Operation Type | Front Hand Brake, Rear Foot Brake |
| F&R Rim | 10 x 5.5 AT (Front) / 9 x 8.0 AT (Rear) |
| F&R Tyre | AT20 x 7.0-10 (Front) / AT19 x 10-9 (Rear) |
| Transmission | Chain |
| Fuel Tank | 9 L |
| Battery | 12V / 7Ah |
| Maximum Speed | 70 km/h |
| Starting Performance | 15 s |
| Climbing Performance | 21° |
| Parking Performance | ≥18° |
| Emission Index | CO (%) ≤ 3.8 / HC (ppm) ≤ 800 |
| Noise Level | ≤82 dB(A) |
| Engine Model | LC166FMM |
| Engine Type | Single Cylinder, 250cc, Air Cooled, 2 Valves, 4-Stroke |
| Engine Brand | Loncin |
| Bore × Stroke | 65.5 x 66.2 mm |
| Engine Capacity | 223 mL |
| Compression Ratio | 9.0:1 |
| Max. Power | 12 kW (1±5%) / 7500 rpm (1±5%) |
| Max. Torque | 17 N·m (1±5%) / 6000 rpm (1±5%) |
| Min. No Load Speed | 1500 rpm (1±10%) |
| Min. Fuel Consumption Rate | 354 g/kW·h |
| Fuel Type | ≥ RQ90 |
| Clutch Method | Manual |
| Start System | Electric Start |
| Ignition System | CDI |
| Carburetor | PZ30 |
| Spark Plug | D8TC |
| Front Light | 12V 18-18W |
| Brake Performance | Front Wheel Force ≥60% / Front Wheel Force Difference ≥55% / Rear Wheel Force ≤20% / Rear Wheel Force Difference ≤24% |
| Starting Acceleration | ≤8 s |
| Speed Acceleration | ≤8 s |
| Tank Capacity | 9 L |
| Front & Rear Suspension | Oil Damper |
| Front & Rear Suspension Length | 350 mm (Front) / 390 mm (Rear) |
